Cooler Master Announces The TD500L & Q300L / Q300P PC Cases For The Mainstream Market

Cooler Master is no stranger in the PC hardware market. Their strong recognition throughout the industry has allowed them to create new, yet enticing cases over the years.

Today, the Taiwan-based company has announced two new cases to join its fleet of PC cases. Dubbed as the TD500L, Q300L and the Q300P, Cooler Master has announced a ton of momentum into the M-ATX and ATX spectrum of the market.

The Cooler Master Masterbox Q300L

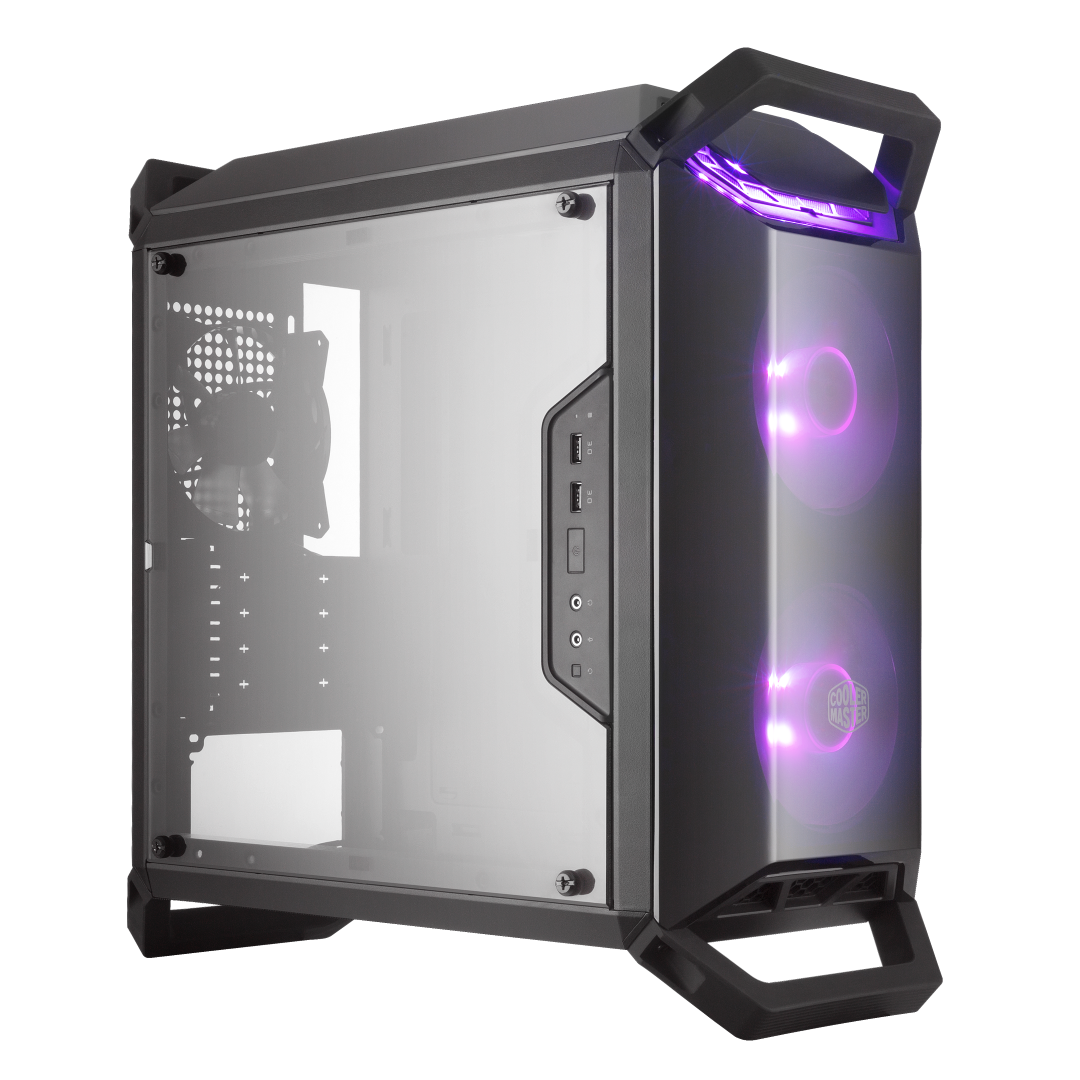

The Cooler Master Masterbox Q300P

The Cooler Master Masterbox Q300L and Q300P are set to retail at at RM 169 and RM 299 respectively. Not only are they aimed to disrupt the M-ATX market, but also aim to bring some RGB frenzy to the table with some excellent cable management implementations. Here’s a few images of these cases.

The Cooler Master Masterbox TD500L

On the other hand, the TD500L aims to provide decent airflow, along with up-to-date trends to showcase your build. The TD500L will retail for RM 209 in Malaysia and would support ATX, M-ATX and M-ITX motherboards for maximum flexibility.

Note: The side panel on the TD500L is actually acrylic.

Product NameMasterBox TD500LMasterBox Q300LMasterBox Q300P
Model numberMCB-D500L-KANN-S00MCB-Q300L-KANN-S00MCB-Q300P-KANN-S02
Color(s)BlackBlackBlack
MaterialsSteel, PlasticSteel, PlasticSteel, Plastic
Dimensions (L x W x H)493 x 217 x 468 mm387 x 230 x 378mm450 x 230 x 450mm
Motherboard SupportATX ( up to 272mm width), M-ATX, M-ITXM-ATX, M-ITXM-ATX, M-ITX
Expansion Slots744
5.25" Drive BaysN/AN/AN/A
3.5" Drive Bays2 (Max. 2)11
2.5" Drive Bays2 (Max. 6)22
I/O PanelUSB 3.0 x 2, Audio In / OutUSB 3.0 x 2, Audio In / OutUSB 3.0 x 2, Audio In / Out
Pre-installed Fan(s)Rear 120mm x 1 (black)
*RGB fans not included
Front:N/A
Rear: x1
Front:120mm RGB LED x 2
Rear: 120mm non-LED x 1
Fan SupportFront: 120mm x 3 / 140mm x 2
Top: 120/140mm x 2
Rear: 120mm x 1
Bottom: N/A
Front: 120 / 140mm x 2
Top: 120mm x 2
Rear: 120mm x 1
Bottom: 120mm x 1
Front: 120 / 140mm x 2
Top: 120mm x 2
Rear: 120mm x 1
Bottom: 120mm x 1
Radiator SupportFront: 120/240/280/360mm
Rear: 120mm
Top: 120/240mm
Front: 120mm x 1 / 240mm x 1
Rear: 120mm x 1
Top: N/A
Front: 120mm x 1 / 240mm x 1
Rear: 120mm x 1
Top: N/A
ClearancesCPU Cooler: 166mm
PSU: 190mm
GPU: 407mm
CPU Cooler: 157mm
PSU: 160mm
GPU: 360mm
CPU Cooler: 157mm
PSU: 160mm
GPU: 360mm
Cable RoutingBehind MB Tray: 19mmBehind MB Tray: 28mmBehind MB Tray: 28mm
Dust FiltersFront, Top, BottomN/AN/A
Power Supply SupportBottom mount, ATXBottom mount, ATX PS2Bottom mount, ATX PS2
