Description of the product
Please note that this cable is compatible with both four-pin and three-pin case fan models.

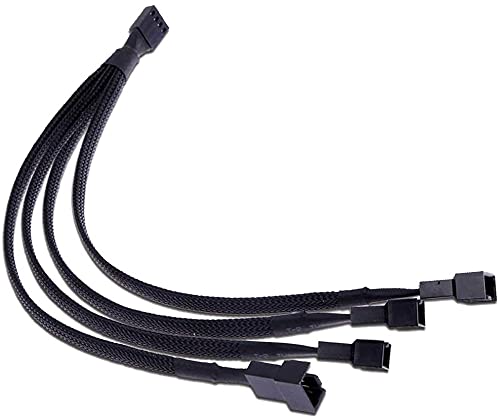

This cable has a 4 Pin Female Connector at one end and 4 Male Connectors at the other end wrapped in Black Braiding ( 1 of them is 4pin ,3 of them is 3pin ). Fan Splitter Adapter Connects 4 Computer Case Fans to a Single Motherboard Fan Header, Compliant with 4 Pin and 3 Pin PMW Fan Connectors.
The Fan Splitter Cable Allows You to Add an Additional Fan to Your Computer Case to Improve Airflow.
In Black Braiding, a PWM Splitter Cable has a 4 PIN Female Connector at One End and 4 Male Connectors on the Other End.

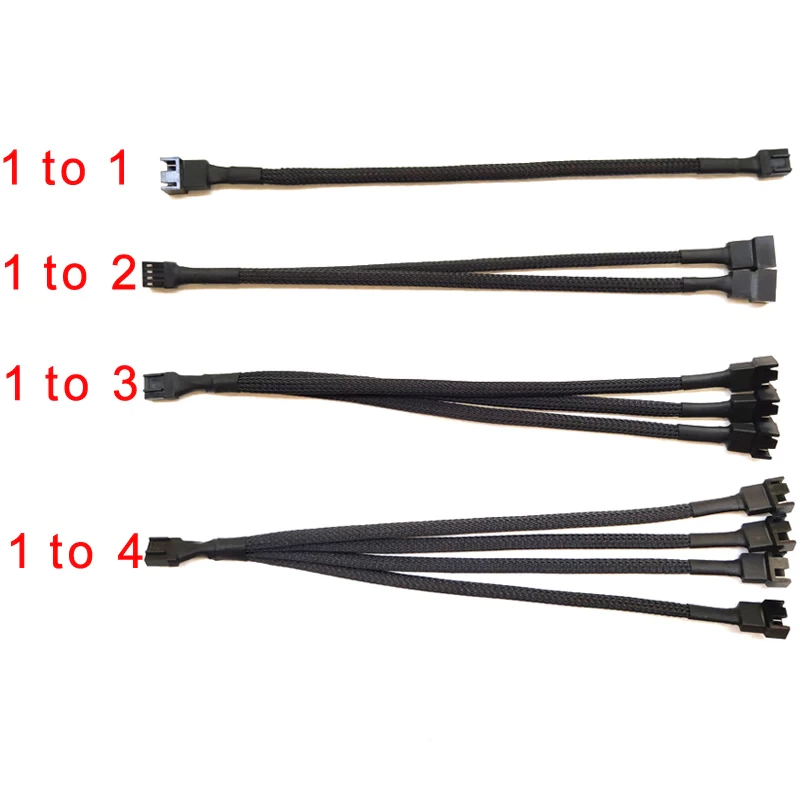

1 to 4 Ways Fan Cable Splitter: The Fan Splitter Connects 4 Computer Case Fans to a Single Motherboard Fan Header, Compatible with 4 PIN and 3 PIN PMW Fan Connector.
PWMs and fans may be positioned anywhere within your case because to the 24 cm cable’s length.
Cooling fans can be added to a computer casing to increase airflow.
Specifications:
Length of Product: 28 cm
Insulation made of PVC
1000 24 AWG is the wire model. Tinned Copper Wire, OD1.4Mm, Insulation Conductor Specifications: 11 * 0.12ts
Max. Operating Temperature: 80 F
Wire is black in colour.
Product Weight: 8gm. /
Interconnecting four computer fans using a single 4-pin connector on the motherboard and four 4-pin connectors on the fan blades
Netflix planning to add a student discount in the future? Here The Latest Updates
What is a PWM PC fan?
There is an additional wire for pulse width modulation (PWM) in DC fans. When a fourth wire is used to control the fan motor, it is known as a PWM (pulse width modulation). The PWM fan’s control input is provided via a PWM signal. Typically, the control input is an open-drain or open-collector output connected to a 5 V or 3.3 V pull-up voltage.
Exactly what is a PC fan splitter used for?
The motherboard may still tell the fans to speed up if necessary, but now it will do it simultaneously for both of them. You could (particularly if the fan curves were custom-set) provide different commands to various fans based on the current situation if you had several connections.
Can a splitter be used to control fans?
That fan splitter will not allow you to change the fan speed. Rather than using the motherboard’s power supply, the power is coming from the PSU through a Molex connection.
When using a splitter, does PWM work?
From a single motherboard fan header, Gelid’s 1-to-4 PWM Fan Splitter allows you to connect up to four fans.
Does my PC require a fan splitter?
A splitter is not necessary. Your motherboard may not be able to handle 5 fans on a single fan header, especially if two of them are LED. Instead, use MOLEX connectors to connect the fans directly to the power supply. A fan controller is an option as well.
